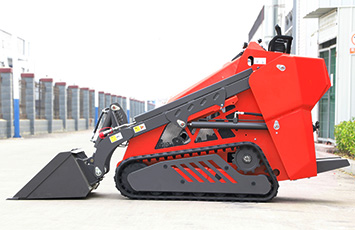

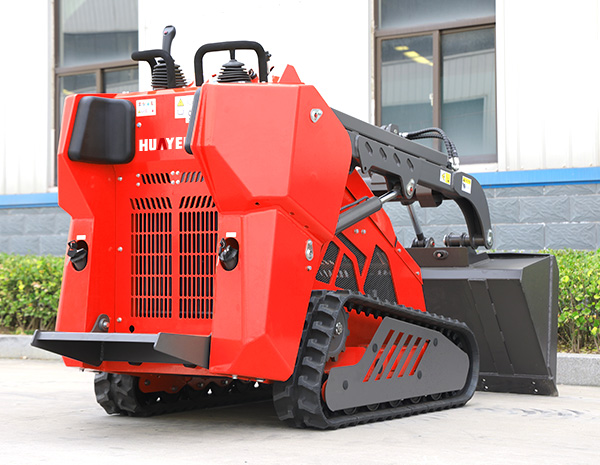

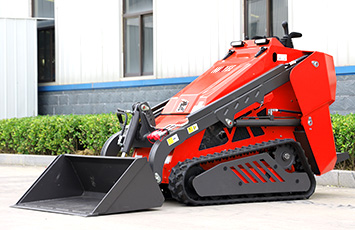

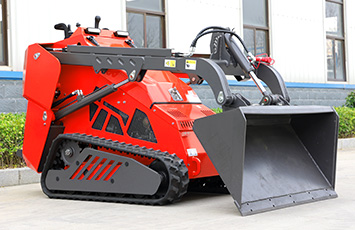

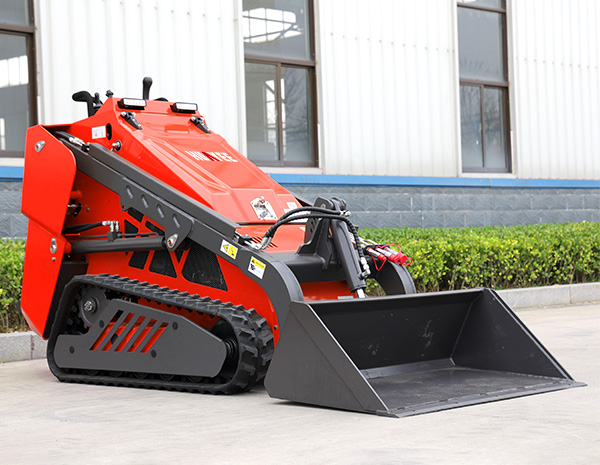

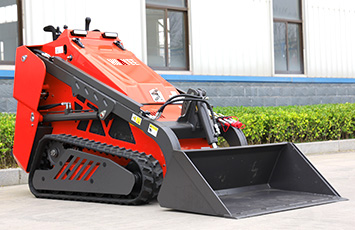

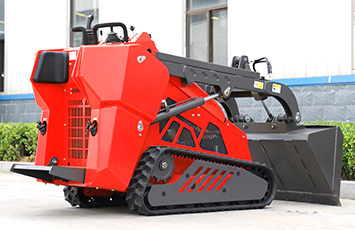

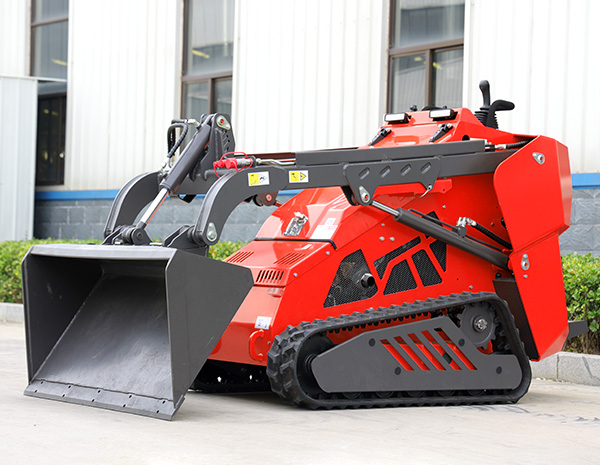

HY680X Mini Skid Steer Loader -

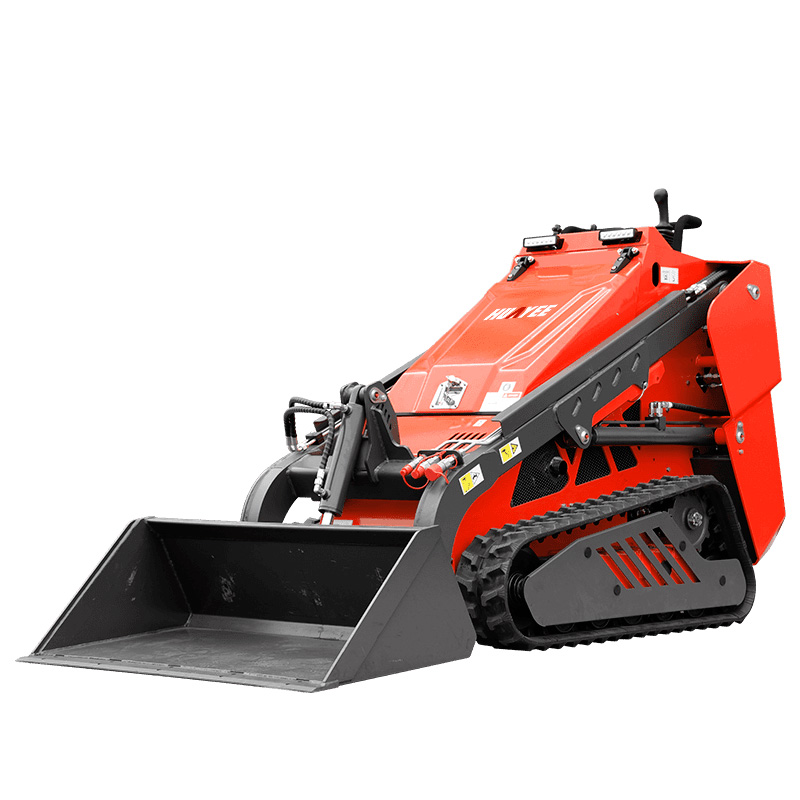

HY680X Mini Skid Steer Loader
The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.
No operating license required Easy to operate Factory direct sale Support customization With CE, Epa/Euro V With various accessories
-

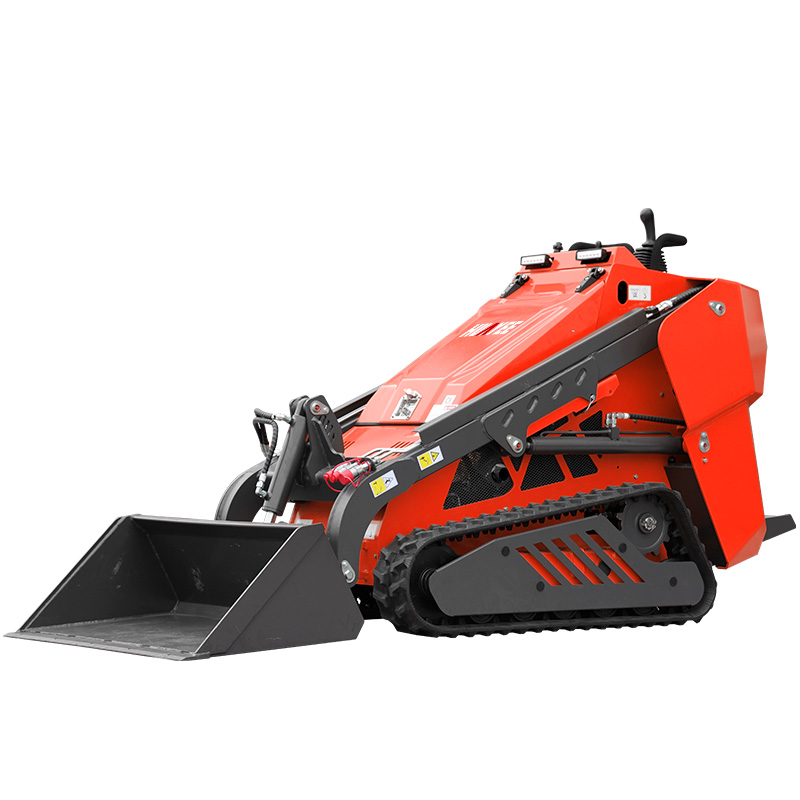

HY680X Mini Skid Steer Loader
The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.
It is mainly suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residential buildings, etc.- Engine Horsepower 24.4HP
- Dimensions 2903*1050*1532mm
- Rated Load Capacity 780kg
-
-
-
CUSTOMIZATION SUPPORTED
Logo/color/engine/etc
We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization.
-
-
-
EPA/EURO V ENGINE
Standard with Standard with Perkins 403J-11 18.4kw or Kubota D1105 18.2kw,diesel engine.
-
-
-
EASY OPERATING,SIMPLE MAINTENANCE
Compact dimensions , Wide range of uses。
It is an ideal choice for working in places where the site is small, the ground is undulating, and the job content changes frequently.It is suitable for infrastructure construction, industrial application, dock loading and unloading, urban streets, residences, barns, livestock houses, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery.
| Specification | |
| Rated Load Capacity | 780kg |
| Engine Type | Kubota D1105/Perkins D403J-11/Yanmar 3TNV80F |
| Engine Horsepower | 24.4HP/24.7HP/24.4HP |
| Digging Bucket Capacity | 0.2m³ |
| Bucket Width | 1235mm |
| Operating Weight | 1380kg |
| System Working Pressure | 17Mpa |
| Travel Speed | 0-5.8 km/h |
| Max. Grade Ability | 30% |
| Fuel tank | 29L |
| Hydraulic oil tank | 38L |
| Main Dimensions | |
| Dimensions | 2903*1050*1532mm |
| Wheel Track | 850mm |
| Wheel Base | 1080mm |
| Ground Clearance | 170mm |
| Mini.Turning Radius | 1756mm |
| Working Range | |

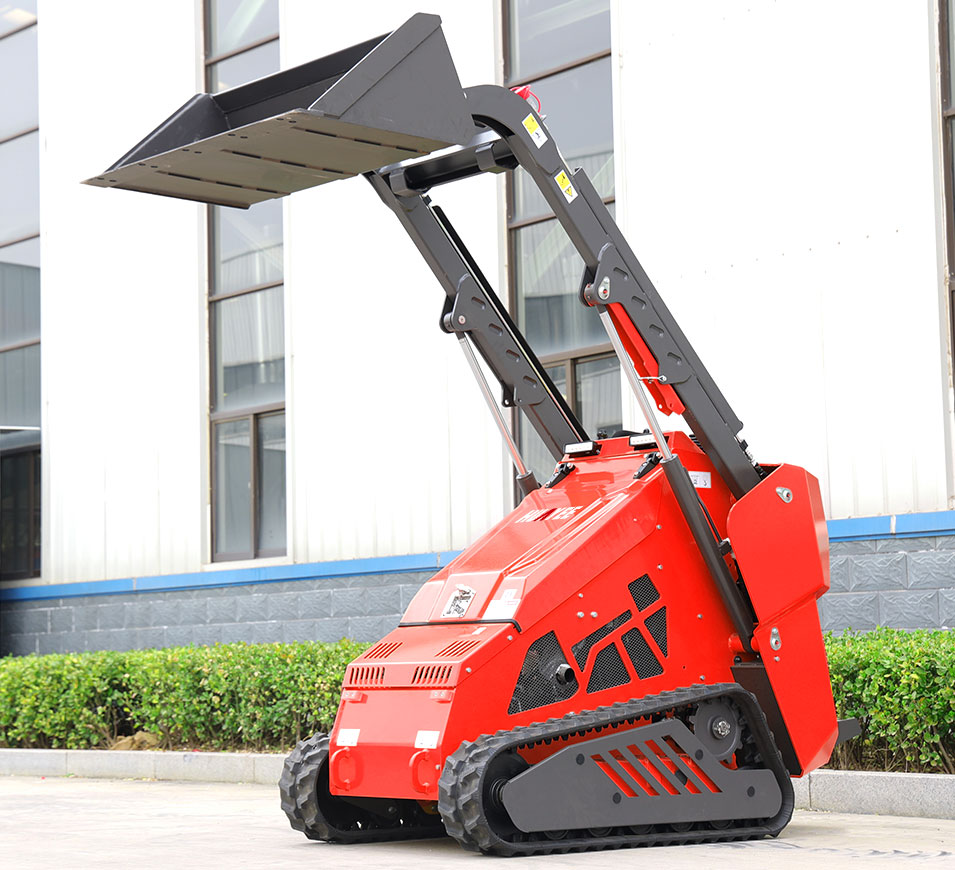

| Max.Lifting Height | 3145mm |
| Max.Dump Height | 2358mm |
| Boom Lift Time | 4.1s |
| Boom Lower Time | 2.4s |
| Bucket Dump Time | 1.5s |
| Bucket Rotation Angle | 30° |
