  • HY360W Mini Skid Steer Loader

    The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.


    No operating license required
    Easy to operate
    Factory direct sale
    Support customization
    With CE, Epa/Euro V
    With various accessories
    features and benefits

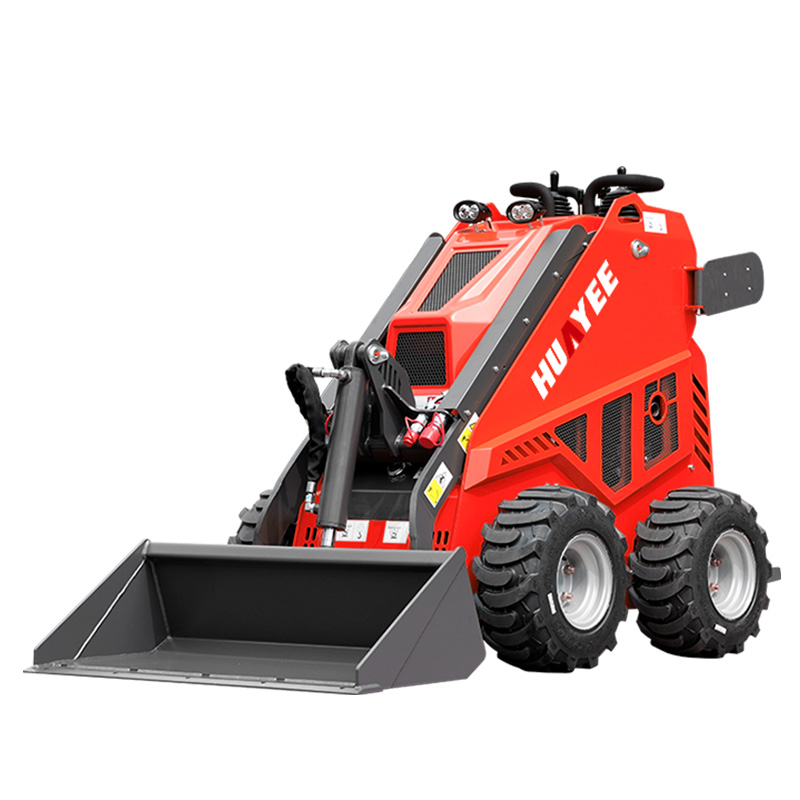

    • 1.HY360W-Mini-Skid-Steer-Loader

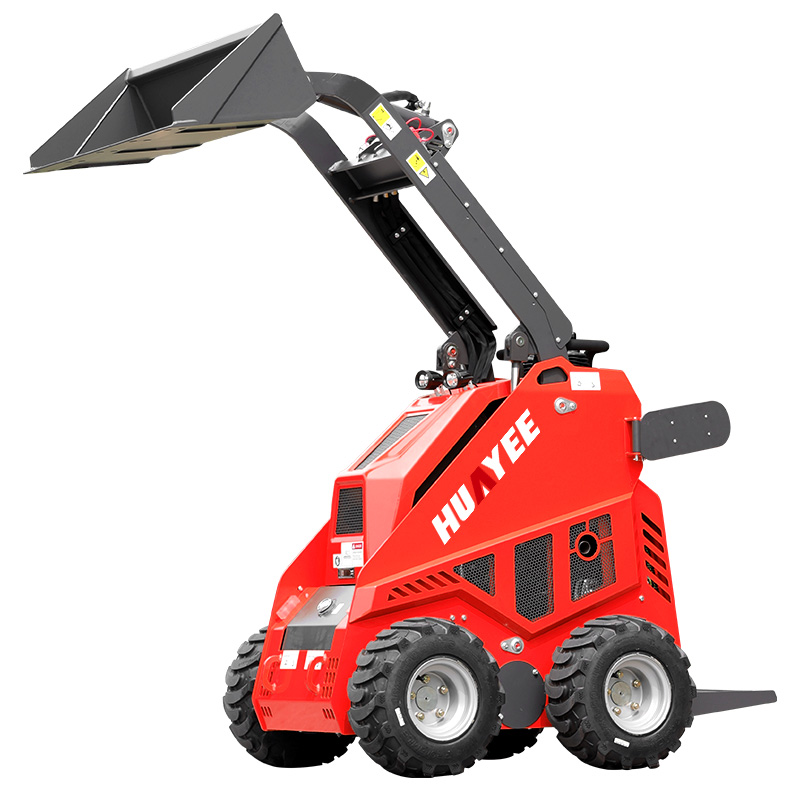

    • 2.HY360W-Mini-Skid-Steer-Loader

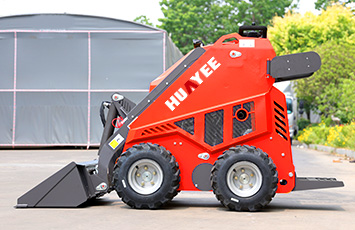

    • 3.HY360W-Mini-Skid-Steer-Loader

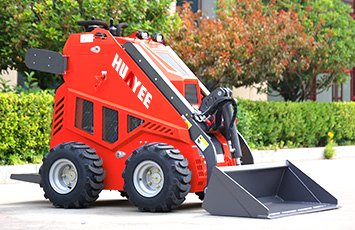

    • 4.HY360W-Mini-Skid-Steer-Loader

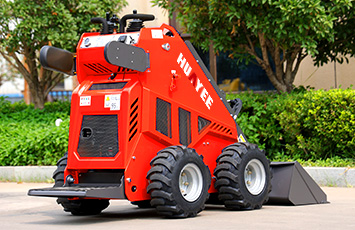

    • 5.HY360W-Mini-Skid-Steer-Loader
HY360W Mini Skid Steer Loader Request Price
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
navigation /products/mini skid steer loader
HY360W Mini Skid Steer Loader
The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.
It is mainly suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residential buildings, etc.
  • Engine Horsepower 15HP
  • Dimensions 2249*1045*1344mm
  • Rated Load Capacity 238kg
contact us
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE

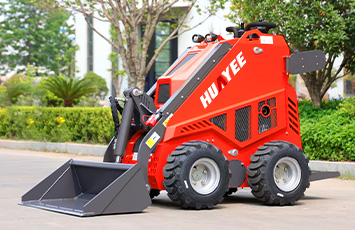

  • 1.HY360W-Mini-Skid-Steer-Loader

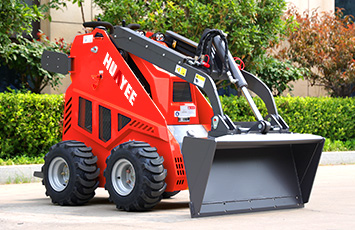

  • 2.HY360W-Mini-Skid-Steer-Loader
  • CUSTOMIZATION SUPPORTED

    Logo/color/engine/etc


    We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization .

  • EPA/EURO V ENGINE.CE CERTIFICATED


    Equipped with brand-name engines that meet market standards, these engines offer ample power to handle demanding operating conditions, are highly efficient and energy-saving, and provide comprehensive power support. These renowned brand engines are durable and come with convenient and comprehensive after-sales service.

  • SIMPLE CONTROL,EASYMAINTENANCE


    Its relatively simple structure and readily available and easily replaceable parts make routine maintenance and upkeep relatively simple and quick. High fuel efficiency and low failure rate further reduce operating costs.

About Accessories
parameters
Specification
Rated Load Capacity238kg
Engine TypeBriggs&Stratton 25T2/RATO R420/KIPOR 192F
Engine Horsepower13.5HP/15HP/11.7HP
Digging Bucket Capacity0.13m³
Bucket Width1050mm
Operating Weight715kg/725kg/740kg
System Working Pressure17Mpa
Travel Speed0-5 km/h
Max. Grade Ability30%
Fuel tank6.6L/6.7L/5.5L
Hydraulic oil tank29L
Main Dimensions
Dimensions2249*1045*1344mm
Wheel Track 830mm
Wheel Base680mm
Ground Clearance118mm
Mini.Turning Radius1300mm
Working Range
Max.Lifting Height2633mm
Max.Dump Height 2078mm
Boom Lift Time5.5s
Boom Lower Time4s
Bucket Dump Time3s
Bucket Rotation Angle37°
