  • HY480W Mini Skid Steer Loader

    The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.


    No operating license required
    		Easy to operate
    		Factory direct sale
    Support customization
    		With CE, Epa/Euro V
    		With various accessories
    features and benefits

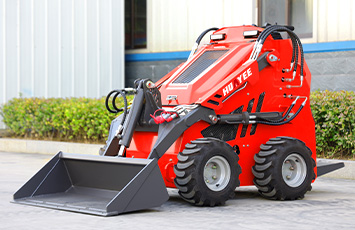

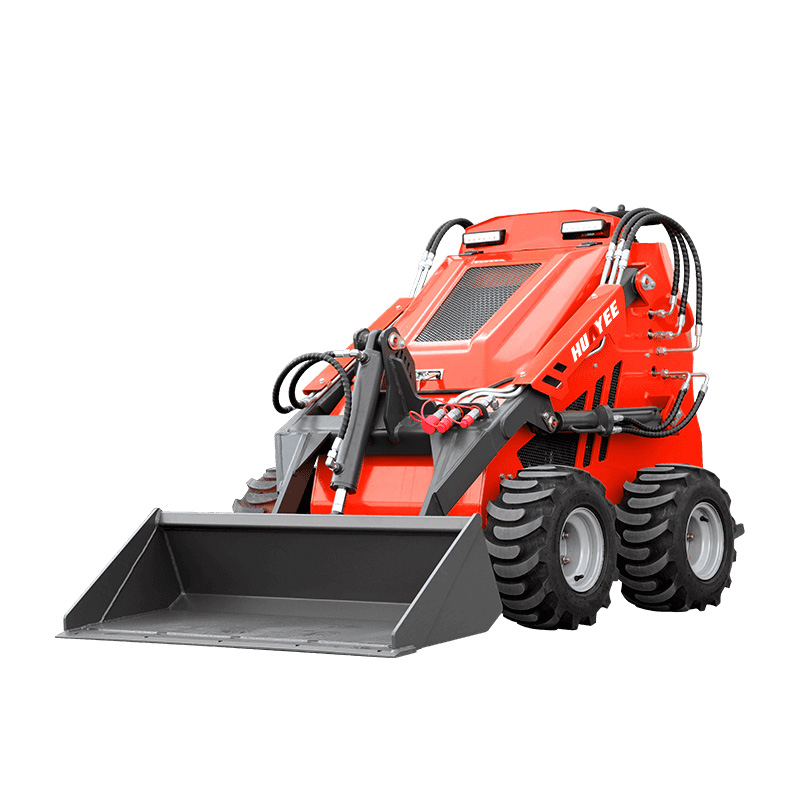

    • 1.HY480W-Mini-Skid-Steer-Loader

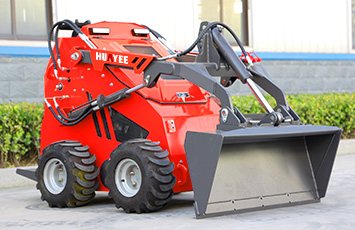

    • 2.HY480W-Mini-Skid-Steer-Loader

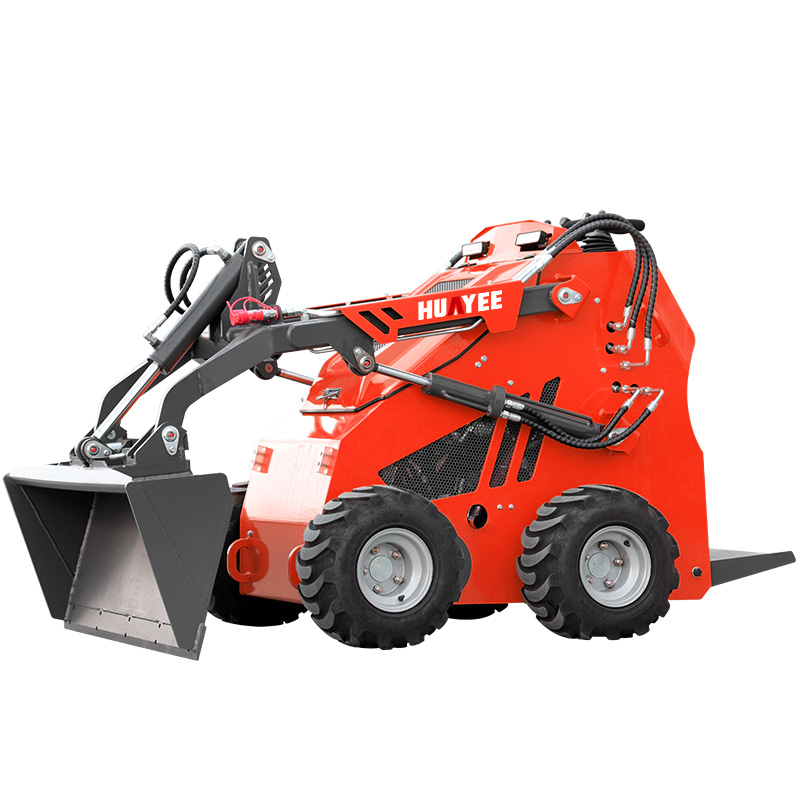

    • 3.HY480W-Mini-Skid-Steer-Loader

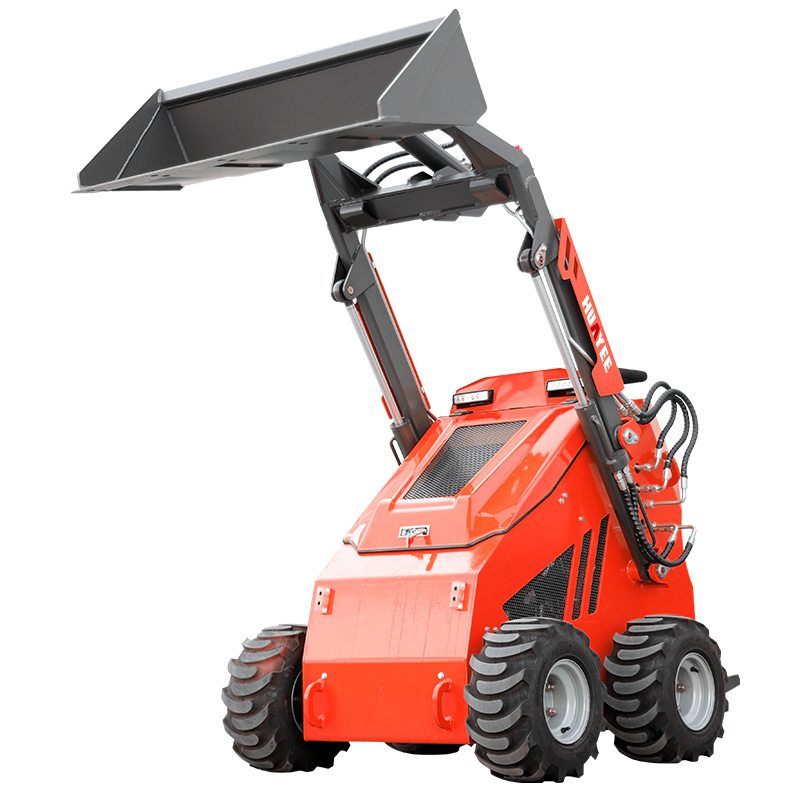

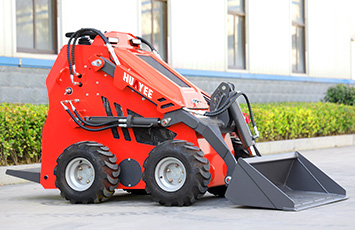

    • 4.HY480W-Mini-Skid-Steer-Loader

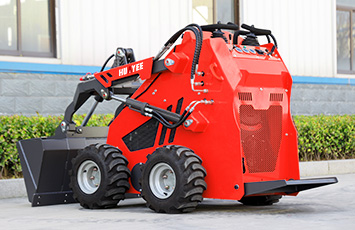

    • 5.HY480W-Mini-Skid-Steer-Loader
HY480W Mini Skid Steer Loader Request Price
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
navigation /products/mini skid steer loader

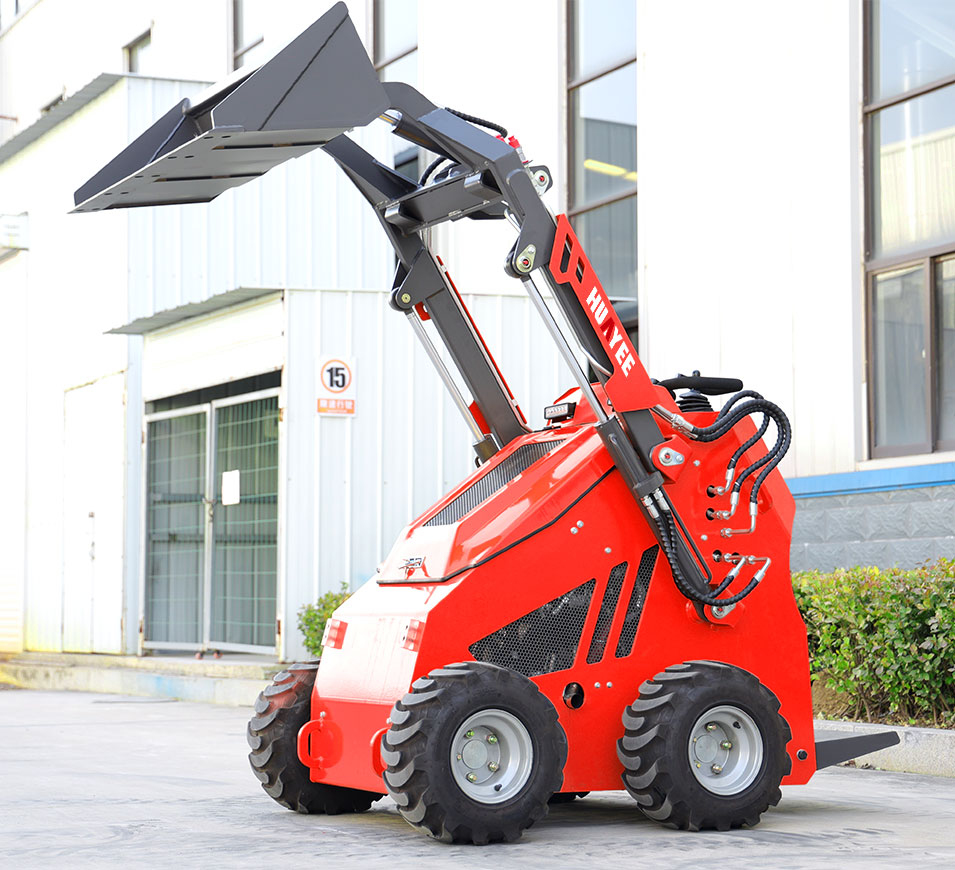

HY480W Mini Skid Steer Loader
  • Engine Horsepower 23HP
  • Dimensions 2368*1119*1293mm
  • Rated Load Capacity 330kg
contact us
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
  • 1.HY480W-Mini-Skid-Steer-Loader

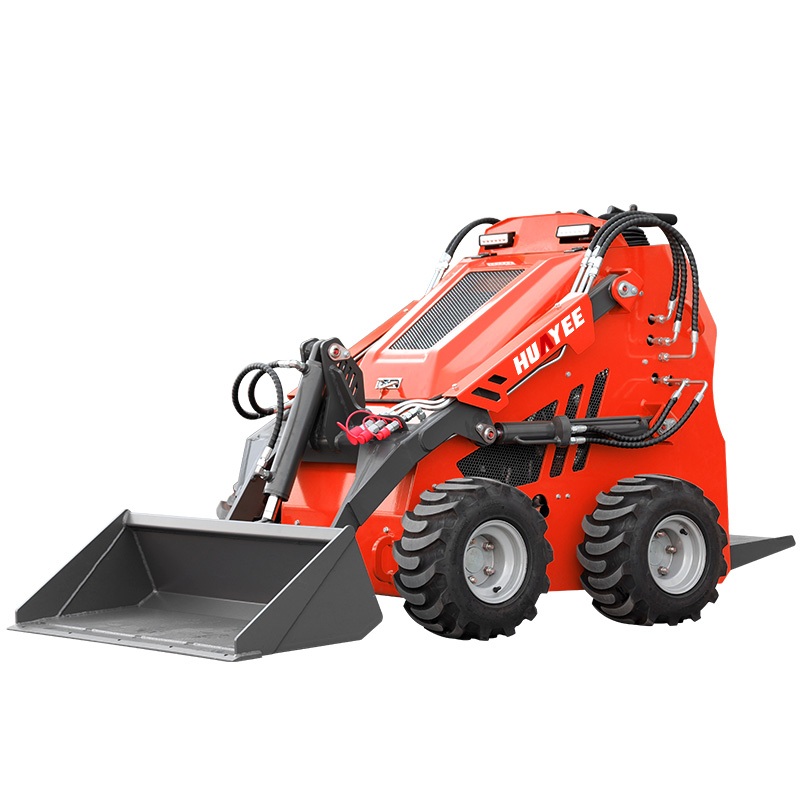

  • 2.HY480W-Mini-Skid-Steer-Loader

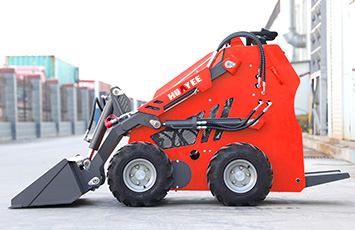

  • 3.HY480W-Mini-Skid-Steer-Loader
  • 4.HY480W-Mini-Skid-Steer-Loader

  • CUSTOMIZATION SUPPORTED

    Logo/color/engine/etc


    We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization.

  • EPA/EURO V ENGINE.CE CERTIFICATED


    Equipped with brand-name engines that meet market standards, these engines offer ample power to handle demanding operating conditions, are highly efficient and energy-saving, and provide comprehensive power support. These renowned brand engines are durable and come with convenient and comprehensive after-sales service.

  • SIMPLE CONTROL,EASYMAINTENANCE


    Its relatively simple structure and readily available and easily replaceable parts make routine maintenance and upkeep relatively simple and quick. High fuel efficiency and low failure rate further reduce operating costs.

About Accessories
parameters
Specification
Rated Load Capacity330kg
Engine TypeBriggs&Stratton 3864/RATO R740D/KIPOR KD2V80
Engine Horsepower23HP/23HP/20HP
Digging Bucket Capacity0.15m³
Bucket Width1140mm
Operating Weight845kg/856kg/823kg
System Working Pressure17Mpa
Travel Speed0-4.1 km/h
Max. Grade Ability30%
Fuel tank25L
Hydraulic oil tank25L
Main Dimensions
Dimensions2368*1119*1293mm
Wheel Track 914mm
Wheel Base685mm
Ground Clearance110mm
Mini.Turning Radius1428mm
Working Range
Max.Lifting Height2450mm
Max.Dump Height 1870mm
Boom Lift Time4.8s
Boom Lower Time3.5s
Bucket Dump Time2.4s
Bucket Rotation Angle33°
