  • HY480 Mini Skid Steer Loader

    The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.


    No operating license required
    		Easy to operate
    		Factory direct sale
    Support customization
    		With CE, Epa/Euro V
    		With various accessories
    features and benefits

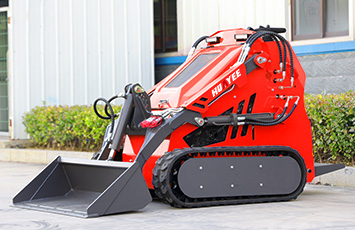

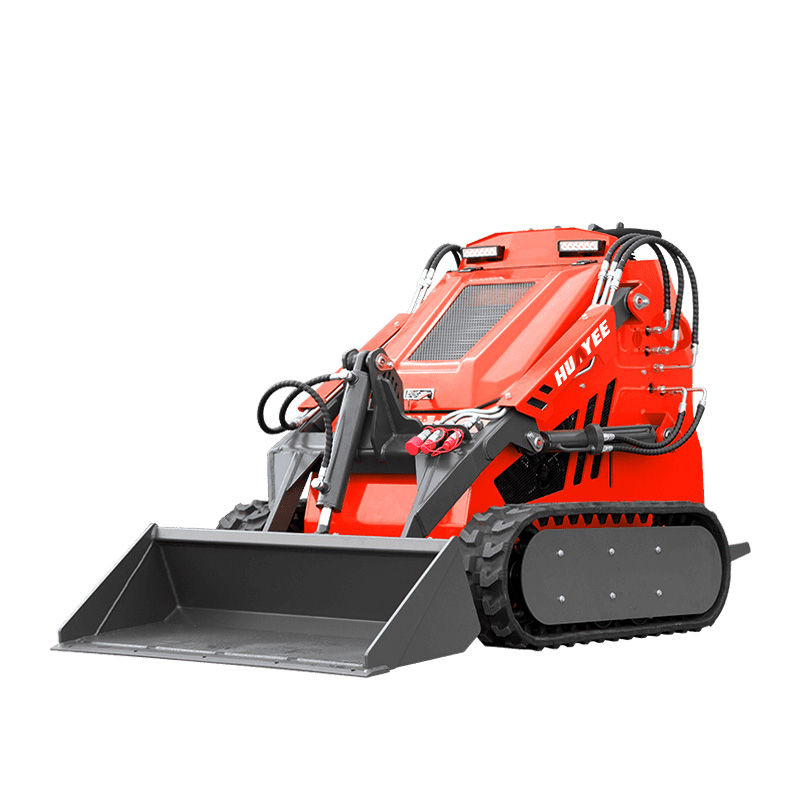

    • 1.HY480-Mini-Skid-Steer-Loader

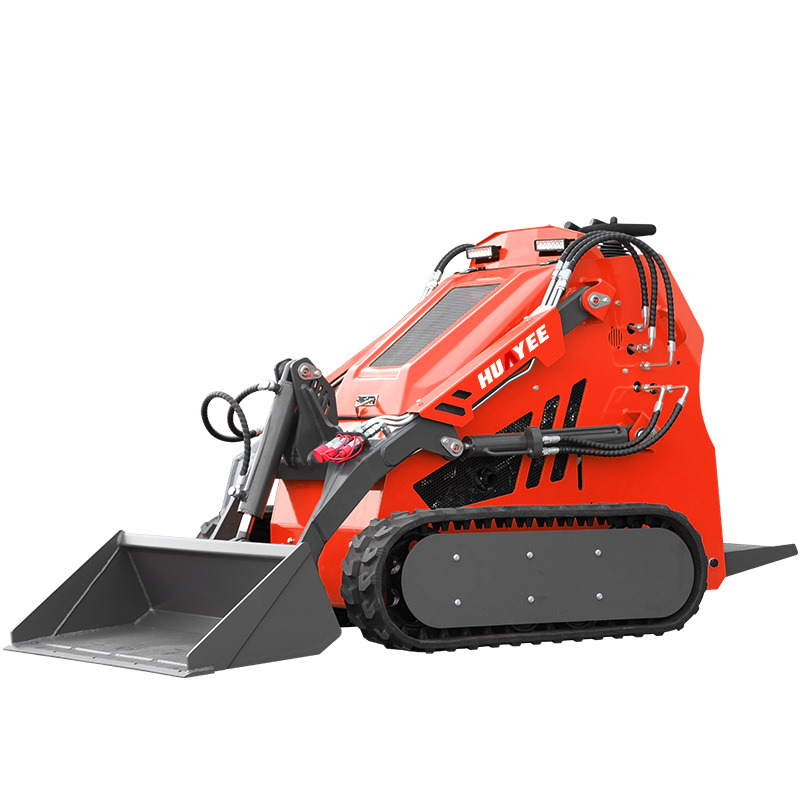

    • 2.HY480-Mini-Skid-Steer-Loader

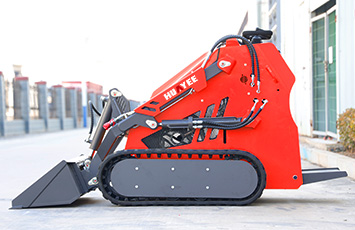

    • 3.HY480-Mini-Skid-Steer-Loader

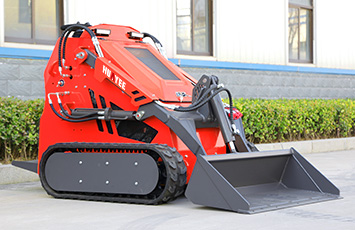

    • 4.HY480-Mini-Skid-Steer-Loader

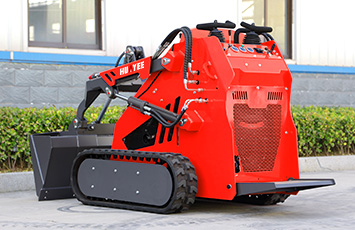

    • 5.HY480-Mini-Skid-Steer-Loader
HY480 Mini Skid Steer Loader Request Price
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
navigation /products/mini skid steer loader
HY480 Mini Skid Steer Loader
  • Engine Horsepower 23HP
  • Dimensions 2344*1087*1290mm
  • Rated Load Capacity 560kg
contact us
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
  • 1.HY480-Mini-Skid-Steer-Loader

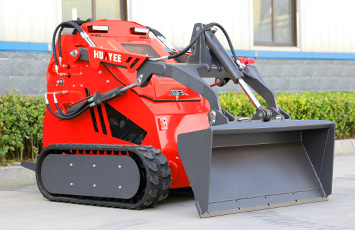

  • 2.HY480-Mini-Skid-Steer-Loader

  • CUSTOMIZATION SUPPORTED

    Logo/color/engine/etc


    We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization .

  • EPA/EURO V ENGINE


    High performance engines have durability and excellent fuel efficiency Our high-performance diesel engines deliver exceptional durability and superior fuel efficiency, ensuring maximum productivity with minimal downtime.

  • EASY OPERATING，SIMPLE MAINTENANCE


    Compact dimensions , Wide range of uses.
    It is an ideal choice for working in places where the site is small, the ground is undulating, and the job content changes frequently.It is suitable for infrastructure construction, industrial application, dock loading and unloading, urban streets, residences, barns, livestock houses, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery.

About Accessories
parameters
Specification
Rated Load Capacity560kg
Engine TypeBriggs&Stratton 3864/RATO R740D/KIPOR KD2V80
Engine Horsepower23HP/23HP/20HP
Digging Bucket Capacity0.15m³
Bucket Width1140mm
Operating Weight920kg/930kg/950kg
System Working Pressure17Mpa
Travel Speed0-5 km/h
Max. Grade Ability30%
Fuel tank25L
Hydraulic oil tank25L
Main Dimensions
Dimensions2344*1087*1290mm
Wheel Track 907.5mm
Wheel Base710mm
Ground Clearance110mm
Mini.Turning Radius1354mm
Working Range
Max.Lifting Height2450mm
Max.Dump Height 1870mm
Boom Lift Time4.8s
Boom Lower Time3.5s
Bucket Dump Time2.4s
Bucket Rotation Angle33°
